Short Description

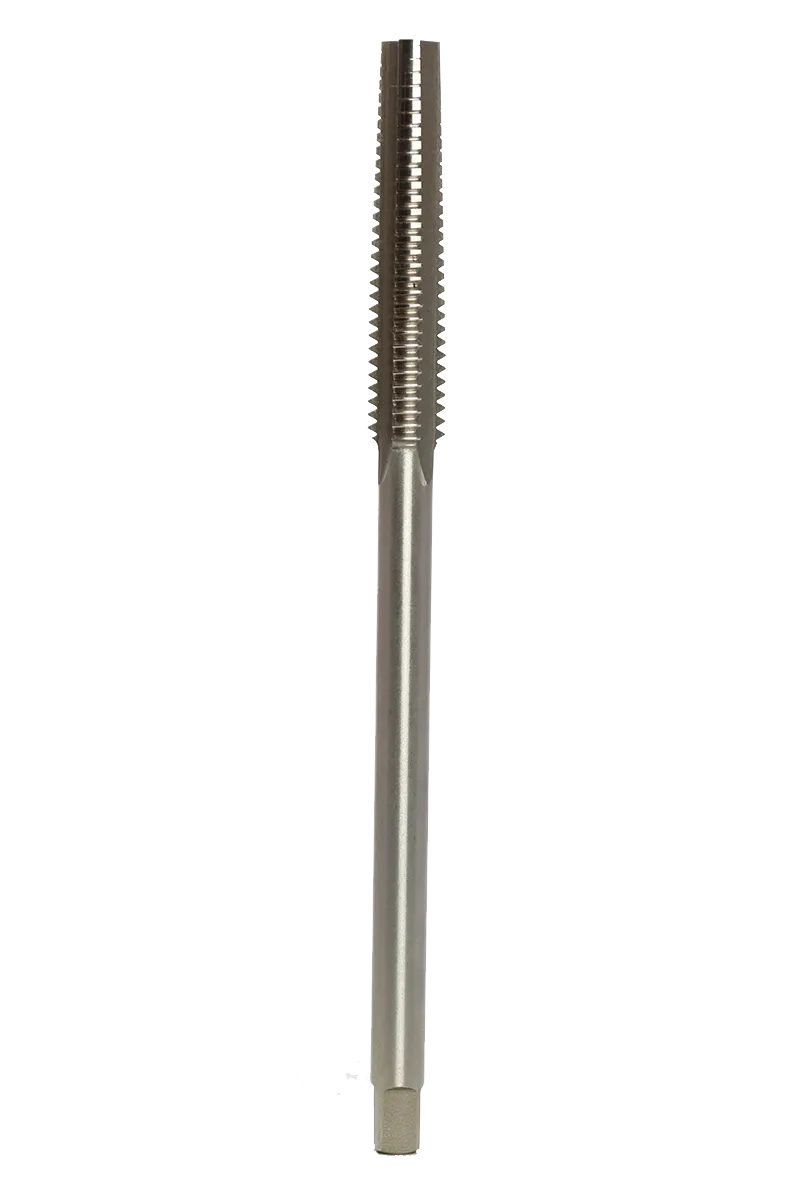

Threading a nut sounds simple until you're doing it ten thousand times a shift, and that's where a purpose-built nut tap earns its place on the production floor. Unlike a standard tap that has to be backed out after every cut, these taps carry a long, slender shank that lets finished nuts slide off the cutting section and collect further down the tool, so the machine keeps running in one direction without pausing. The chamfer is ground long as well, spreading the cutting load across more teeth to suit the shallow, short-hole nature of a nut. Genuine Enterprises manufactures these taps to metric thread specifications for nut producers running continuous, high-speed tapping operations.

  • Material: manufactured from high speed steel to handle continuous high-speed cutting cycles.
  • Grades: available in standard HSS, with cobalt HSS-E for harder nut materials.
  • Thread Type: produced to metric coarse and fine thread profiles, with UNC and UNF available on request.
  • Size Range: manufactured from M3 to M24, matched to standard nut production sizes.
  • Surface Finish: bright as standard, with TiCN coating available for extended tool life in continuous production.
  • Shank Style: offered in straight shank for general use and bent shank for automatic tapping machines.
  • Accuracy Class: ground to closer tolerances than standard general-purpose taps to support consistent nut quality across long runs.

Key Features

  • Extended shank allows finished nuts to accumulate without reversing the tap
  • Long chamfer distributes cutting load across multiple teeth
  • Available in straight shank and bent shank configurations
  • Bent shank versions suit automatic nut tapping machines with continuous cycles
  • Shank diameter kept smaller than thread minor diameter for smooth nut accumulation
  • Manufactured from high speed steel for extended run life
  • Ground to tighter accuracy tolerances suited to production nut tapping
  • Coating options available to support sustained high-volume cycles

Applications of Metric Nut Taps

  • High-volume hex nut production on automatic tapping machines
  • Threading lock nuts and castle nuts in fastener manufacturing
  • Producing square nuts and weld nuts for structural fasteners
  • Tapping flange nuts used in automotive assembly
  • Threading coupling nuts for plumbing and construction fasteners
  • Producing specialty nuts for electrical and panel hardware
  • Tapping color-coated and plated nuts in finishing production lines
  • Continuous cycle threading on bent shank nut tapping equipment
  • Threading anchor nuts used in structural and industrial fastening
  • Producing nuts for export supply to fastener distributors

Advantages of Metric Nut Taps

  • Keeps production running without pausing to unscrew the tap after each nut
  • Reduces cycle time compared to standard taps used on nut blanks
  • Maintains consistent thread quality across long, continuous runs
  • Lowers the risk of tap wear affecting dimensional accuracy over time
  • Suited to both manual-fed and fully automatic tapping setups
  • Supports higher throughput on dedicated nut manufacturing lines

Why Choose Genuine Enterprises

Nut manufacturing runs on throughput, and a tap that needs constant attention or frequent replacement quickly becomes the bottleneck on an otherwise efficient line. Genuine Enterprises builds these taps around that reality, keeping shank length, chamfer geometry, and accuracy class consistent across every batch so production doesn't slow down waiting on tooling. Each size is checked against nut thread tolerances before it leaves the facility.



Fastener manufacturers looking for a metric supplier in India for nut tapping tools often find that shank length and bend angle vary between suppliers in ways that aren't obvious until the tap is already running on the machine. Genuine Enterprises manufactures to consistent specifications across repeat orders, so a tap that worked on the line last quarter performs the same way this quarter.

1.What's the difference between straight shank and bent shank nut taps?

Straight shank taps are used on general nut tapping setups, while bent shank taps are designed for automatic machines where nuts need to be continuously ejected without stopping the cycle.

2. Why is the shank smaller than the tap's thread diameter?

This allows finished nuts to slide freely down the shank and accumulate there instead of needing the tap to be unscrewed after every piece.

3. What thread standards are available for these taps?

They're produced to metric coarse and fine profiles as standard, with UNC and UNF available on request.

4. Are these taps suitable for high-speed automatic tapping machines?

Yes, particularly the bent shank versions, which are built specifically for continuous cycle operation on automatic nut tapping equipment.

5. Do nut taps need a different accuracy class than general-purpose taps?

Yes, nut taps are typically ground to tighter tolerances to maintain consistent thread quality across large production volumes.
