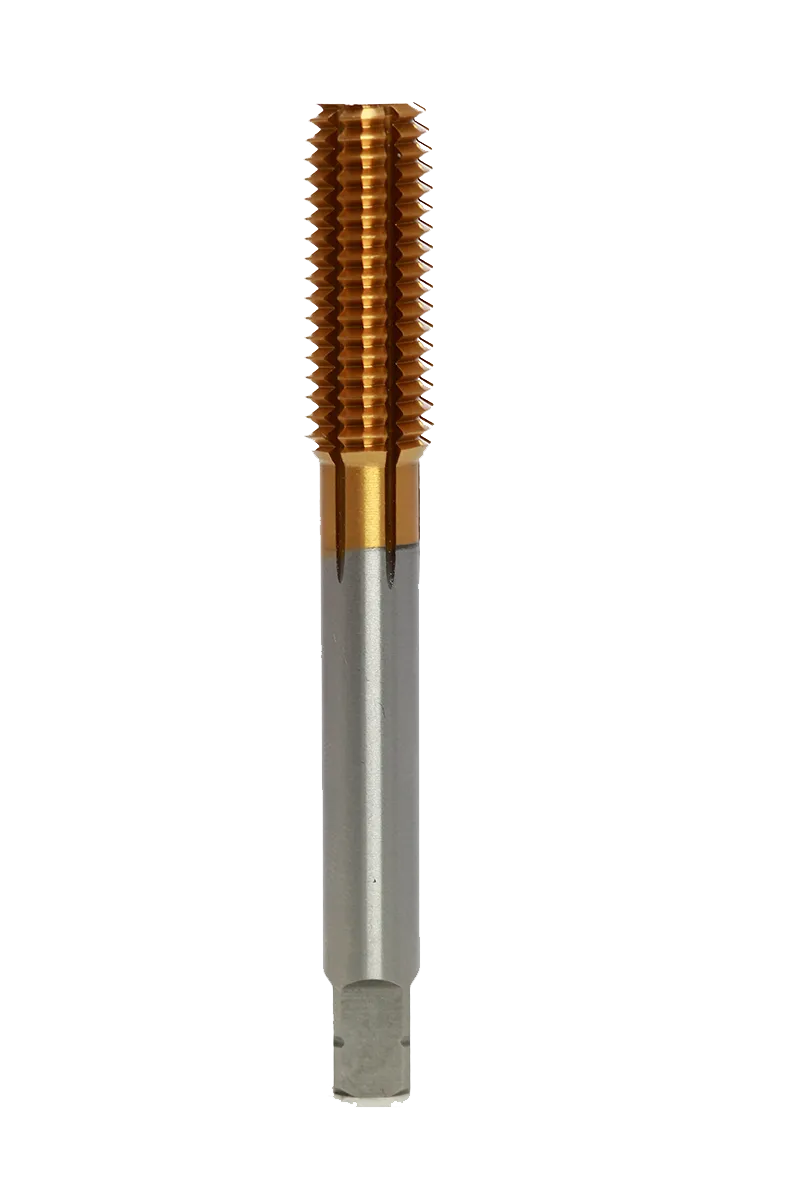

Panther Series-7

Roll Form Taps - Panther Series

+91-8777212335

Short Description

A threaded hole only does its job if it holds up under load, and that's where the forming process behind the Panther Series makes a real difference. Instead of cutting away material to create a thread, these taps press the metal into shape, so the finished thread follows an unbroken grain structure rather than one interrupted by a cutting edge. That difference shows up most in parts exposed to vibration or repeated fastening and unfastening, where a formed thread tends to hold its grip longer than a cut one. Genuine Enterprises produces these roll form taps for manufacturers who need that extra margin of thread strength built into the part itself.

  • Material: manufactured from hardened high speed steel to withstand the forming loads involved.
  • Grades: available in standard HSS and HSS-Co for tougher ductile alloys.
  • Thread Type: covers Metric Coarse and Metric Fine, with UNC available on request.
  • Size Range: produced from M3 to M20, suited to mid to larger fastener applications.
  • Surface Finish: bright as standard, with TiN coating available to reduce forming friction.
  • Standards Compliance: geometry follows DIN 371 form tap specifications.
  • Recommended Material Hardness: intended for ductile materials up to roughly 32 HRC.

Key Features

  • Forms threads through material displacement rather than cutting
  • Produces threads with continuous grain flow for better load resistance
  • No chip generation, removing a common cause of assembly contamination
  • Available in bottoming and plug configurations
  • Ground with lubrication grooves to manage heat during forming
  • Constructed from hardened HSS for a long working life
  • Runs efficiently on both manual and CNC tapping equipment
  • Sized to standard metric charts for straightforward hole preparation

Applications of Roll Form Taps - Panther Series

  • Threading automotive brackets and mounting points exposed to vibration
  • Tapping structural steel components in machinery frames
  • Producing threaded holes in suspension and chassis parts
  • Working on aluminium housings used in industrial equipment
  • Threading fastening points in appliance and white goods manufacturing
  • Creating threaded holes in agricultural equipment brackets
  • Tapping HVAC frame components and support brackets
  • Producing threaded connections in furniture and shelving hardware
  • Working on brass and copper fittings in fluid handling systems
  • Threading mounting plates used in electrical panel assembly

Advantages of Roll Form Taps - Panther Series

  • Produces threads with stronger resistance to loosening under vibration
  • Extends tool life significantly compared to cutting taps
  • Removes chip contamination risk from the tapping process
  • Reduces the likelihood of oversized or inconsistent threads
  • Supports higher tapping speeds on production lines
  • Leaves a smoother, more uniform thread finish

Why Choose Genuine Enterprises

Parts that face repeated vibration or load cycling put real demands on a threaded hole, and a weak or inconsistent thread tends to show up as a failure point long after the part has left the factory. The Panther Series is built with that kind of long-term stress in mind, keeping forming geometry consistent across every size so thread quality doesn't vary from batch to batch. Genuine Enterprises checks hardness and forming tolerance on each production run before it ships.



Manufacturers searching for a roll form taps supplier in India for structural or automotive-grade work usually need more than a basic size chart, they need confidence that the thread will actually perform once the part is in service. Genuine Enterprises manufactures its own tooling and can walk buyers through pre-tap hole sizing and material suitability directly, which tends to matter more once a part is destined for a vibration-prone application.

1.Are Panther Series taps suitable for automotive fastening points?

Yes, they're well suited to brackets and mounting components where thread strength under vibration matters.

2. What's the largest size available in this series?

Standard production goes up to M20, covering mid to larger fastener sizes.

3. Do formed threads actually resist loosening better than cut threads?

Generally yes, since the continuous grain flow in a formed thread tends to hold up better under repeated vibration than a thread where the grain has been interrupted by cutting.

4. Can these taps be used on structural steel components?

Yes, as long as the steel falls within the ductile hardness range suited to forming, typically under about 32 HRC.

5. Is a coated version necessary for high-volume production?

It's not strictly necessary, but the TiN coated version tends to hold up better under sustained, high-volume forming cycles.
