Ninja Series-12

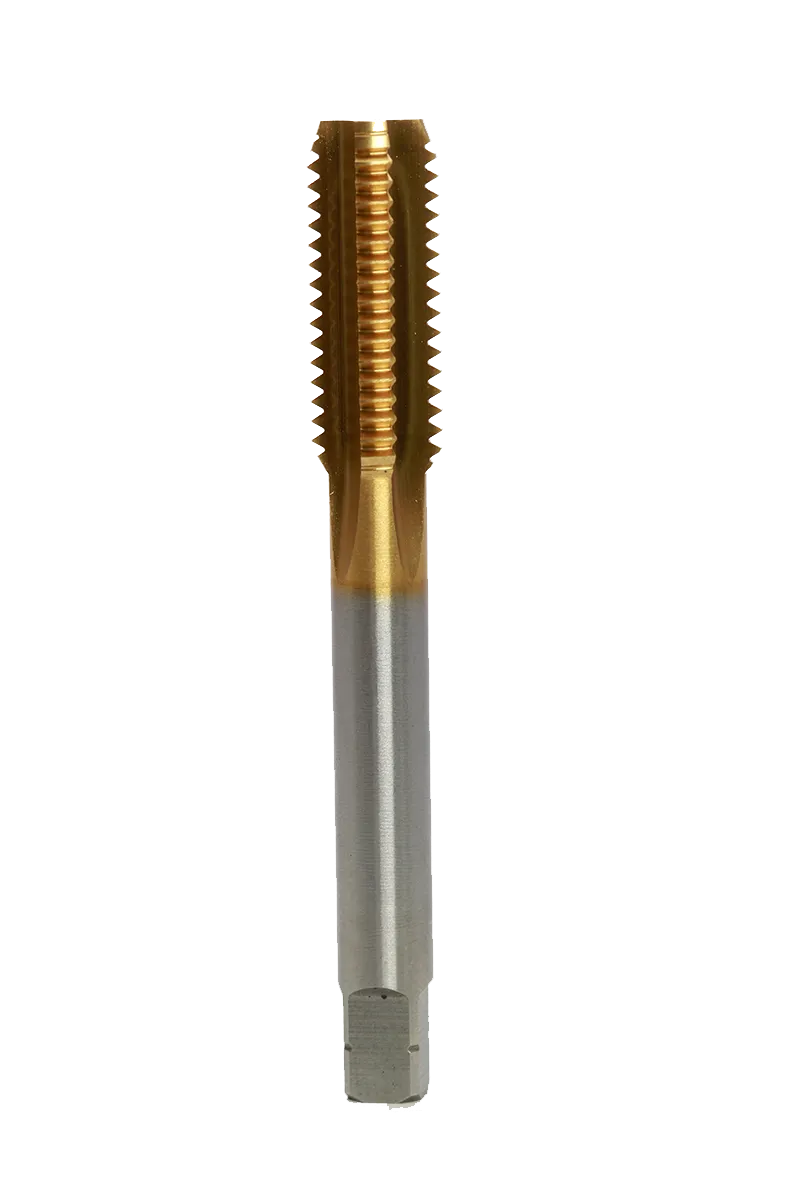

Cast Iron Taps - Ninja Series

+91-8777212335

Short Description

Ask any machinist who has snapped a tap halfway down a blind hole in a cast iron casting, and they'll tell you it's rarely the machine's fault. Cast iron doesn't curl into long chips the way steel does. It fractures into small, gritty fragments that pack around the flutes if the tap wasn't built for that behaviour in the first place. The Ninja Series was engineered around this exact issue, with flute design and cutting geometry that clear those fragments instead of fighting them. Genuine Enterprises manufactures these cast iron taps for shops where thread failure on a cast component simply isn't an option.

  • Material: forged and ground from high speed steel, chosen for its edge retention under repeated cutting cycles.
  • Grades: standard HSS as well as cobalt-enriched HSS-E for demanding, high-hardness castings.
  • Thread Type: primarily Metric Coarse and Metric Fine, with UNC threads produced on request.
  • Size Range: manufactured from M4 through M24, with special sizes available on inquiry.
  • Surface Finish: available bright or with a TiCN coating for shops running high tapping volumes.
  • Standards Compliance: geometry follows DIN 371 and DIN 376 tapping standards.
  • Point Style: ground with a semi-bottoming chamfer suited to the short-chip behaviour of cast iron.

Key Features

  • Flute geometry designed to evacuate short cast iron chips efficiently
  • Ground for a smooth, controlled cutting action rather than aggressive tearing
  • Offered in both machine tap and hand tap configurations
  • Performs consistently on grey iron, ductile iron, and malleable iron
  • Built from wear-resistant high speed steel
  • Optional surface coatings extend service life in continuous production runs
  • Sized to match standard drill charts for accurate hole preparation
  • Fits standard tap holders, wrenches, and CNC tapping heads without adaptors

Applications of Cast Iron Taps - Ninja Series

  • Threading pump casings and impeller housings
  • Tapping cylinder blocks and heads for automotive and diesel engines
  • Creating threaded connections on cast iron manifolds
  • Machining gearbox and transmission casings
  • Threading valve bodies used in industrial piping systems
  • Tapping motor housings and electrical enclosures made from iron castings
  • Working on cast iron brackets and mounting plates
  • Threading heavy-duty machine frames and bases
  • Producing threaded ports on compressor bodies
  • Tapping agricultural machinery parts cast in iron

Advantages of Cast Iron Taps - Ninja Series

  • Lowers the risk of chip packing and tap seizure mid-cut
  • Extends tool life compared to general-purpose taps used on cast iron
  • Handles blind holes without leaving unfinished thread at the bottom
  • Keeps thread finish uniform across large production batches
  • Reduces scrap caused by broken or chipped taps
  • Works equally well in manual shops and automated tapping lines

Why Choose Genuine Enterprises

Cast iron parts often carry a lot of manufacturing cost by the time they reach the tapping stage, whether they're machined castings, pump bodies, or gearbox housings. Losing one to a snapped tap late in the process is expensive in ways that go beyond the tool itself. The Ninja Series exists because Genuine Enterprises builds tooling around that reality, testing chip clearance and edge wear before any batch leaves production.



If your search for a cast iron taps supplier in India keeps landing on generic listings with vague specifications, that's usually a sign of limited manufacturing depth. Genuine Enterprises maintains its own production and quality checks, which means sizes stay in stock and tolerances stay consistent order after order. That kind of dependability matters more once a shop is running cast iron parts at volume.

1.What makes the Ninja Series different from a standard tap used on cast iron?

Its flute and chamfer design is built around the short, gritty chips cast iron produces, which keeps the cutting edge clear and reduces the chance of breakage.

2. Can these taps be used on ductile and malleable iron as well as grey iron?

Yes, the geometry performs consistently across grey, ductile, and malleable iron grades.

3. Is a coated version necessary for occasional use?

No, the bright finish version is suited to lower-frequency work, while coated versions are better for continuous high-volume tapping.

4. What size range does the Ninja Series cover?

Standard production runs from M4 to M24, with additional sizes available as special orders.

5. Are these taps compatible with CNC tapping machines?

Yes, they're built to work in both CNC tapping setups and manual tapping with a standard wrench.
