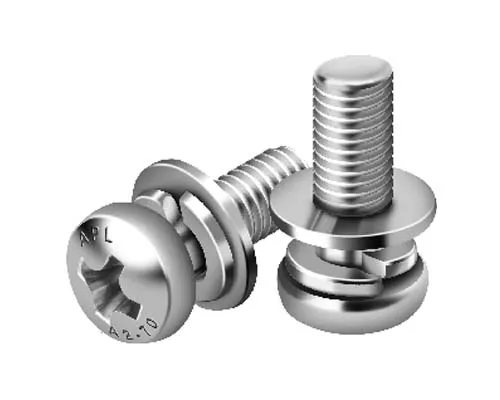

PAN PHILIPS SEMS SCREW

Short Description

Brand:- SAI or any general.

Assembly lines that run on Phillips bits don't always need the flexibility of a dual recess, they just need the washer sorted out ahead of time. Pan philips sem screws deliver exactly that, pairing a standard Phillips cross recess with a washer that's permanently captured under the pan head before it ever reaches the assembly floor. There's no separate washer to pick up, align, and slide on, which keeps things moving on high-speed lines where every extra second per unit adds up across a shift. The rounded pan head and attached washer work together to spread clamping pressure evenly, protecting thinner sheet metal and plastic panels from denting or cracking under the fastener.

Material: Mild steel or stainless steel (SS 304/410) depending on application
Grades: Standard commercial grade with case-hardened options available
Thread Type: Machine thread or self-tapping thread, based on requirement
Size Range: M3 to M8, with custom lengths manufactured on request
Surface Finish: Zinc plated, yellow passivated, or plain finish
Head Type: Pan head with Phillips recess and a captive washer
Standards: Manufactured to SEMS screw conventions, aligned with standard pan head dimensional practices

Key Features

Standard Phillips cross recess for familiar, self-centring driving
Washer permanently captured beneath the pan head
Rounded pan head with a broad, even bearing surface
Available in mild steel and stainless steel construction
Removes the need to handle washers as a separate part
Suitable for sheet metal, plastic, and general assembly work
Corrosion-resistant finishes for varied working conditions
Uniform thread pitch for consistent, repeatable tightening

Applications of Pan Philips SEMS Screw

Home appliance assembly lines
Electrical panel and enclosure fittings
Automotive body and interior assembly
Computer and electronic device casings
Sheet metal cabinet fabrication
HVAC ductwork installation
Furniture and modular hardware fittings
Solar mounting frame assembly
Signboard and bracket installation
General high-speed production assembly

Advantages of Pan Philips SEMS Screw

Speeds up assembly by removing a separate washer-fitting step
Prevents washers from being lost or misaligned during handling
Familiar Phillips drive needs no special tools or training
Spreads clamping pressure evenly across thinner materials
Reduces part count and inventory management on the line
Available in finishes suited to indoor and humid environments

Why Choose Genuine Enterprises

Any factory switching from separate screw-and-washer assemblies to a SEMS screw is doing it to shave time off every single unit, and that time saving disappears fast if washers arrive loose or poorly seated. We keep a close check on washer retention across every production batch, since this is the one detail that determines whether the switch was worth it for our customers. Appliance and automotive assembly units in particular have told us this consistency is what kept them ordering from the same source.

Getting a steady, predictable supply matters just as much as the fastener design itself, and that's the gap we try to close for anyone comparing options for pan philips sem screws supplier in India. We also keep smaller trial quantities available for teams testing this screw against a specific material thickness before committing to a full production run. Small details like washer seating tend to make or break the switch to SEMS screws.

1.What is a pan philips sem screw used for?
It's used in appliance, automotive, and electrical assembly where a built-in washer saves time compared to fitting one separately.

2. What does SEMS mean?
SEMS refers to a screw and washer assembled together as one unit, with the washer permanently retained under the head.

3. What tool is needed to drive this screw?
A standard Phillips screwdriver or bit works, since it uses a familiar cross recess.

4. Can the washer come loose during shipping or handling?
No, when properly manufactured, the washer stays captive under the head through normal handling and transport.

5. Is stainless steel available for outdoor or humid conditions?
Yes, stainless steel variants are available for outdoor or moisture-prone environments.
