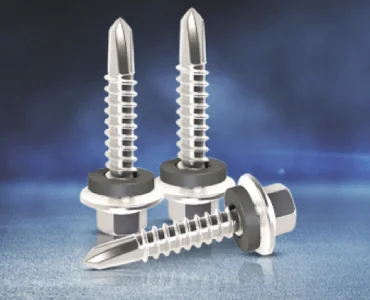

Self Drilling Screws For Cold Rolled Purlins

Short Description

Brand:- HP or any general.

Cold rolled purlins are lighter and thinner than their hot rolled counterparts, which means the fasteners used with them need a different kind of precision. This screw is designed with a fine, sharp drill point suited to light gauge steel, allowing it to bore through the material quickly without generating excess heat or stripping the thread on entry. Since cold rolled sections don't need the same aggressive drilling power as thicker steel, the point geometry here is built for speed and clean penetration rather than raw force. It's a common fastener in metal building construction, where roof sheets and wall cladding need to be secured to light gauge steel framing without pre-drilled holes or additional hardware.

Material: Case-hardened Carbon Steel
Drill Capacity: Rated for cold rolled steel typically 0.5mm to 4mm thick
Thread Type: Self-tapping thread with sharp drill point
Size Range: 4.8mm to 5.5mm diameter, with various lengths available
Head Type: Hex washer head with bonded or loose sealing washer
Surface Finish: Zinc Plated, Ruspert Coated, or other corrosion-resistant coatings
Standards: ASTM, DIN, and applicable roofing industry specifications

Key Features

Fine drill point suited for light gauge cold rolled steel
Fast penetration with minimal heat buildup during drilling
Self-tapping thread that engages cleanly after drilling
No pre-drilling required for standard cold rolled sections
Compatible with common roofing and wall cladding profiles
Available with EPDM or neoprene sealing washers
Coated finishes available for corrosion resistance
Suitable for use with cordless drill drivers on site

Applications of Self-Drilling Screws For Cold Rolled Purlins

Light gauge steel roofing installation
Metal building wall cladding
Pre-engineered steel structures
Warehouse and storage shed roofing
Residential metal roofing projects
Agricultural shed construction
Portable cabin and container structures
Steel frame partition work
Solar panel mounting structures on metal roofs
General light gauge steel fabrication

Advantages of Self-Drilling Screws For Cold Rolled Purlins

Drills quickly through thin steel without pre-drilling
Reduces installation time on large roofing projects
Minimizes heat buildup that can weaken thin steel sections
Provides a clean, secure hold on light gauge framing
Sealing washer options help prevent water leakage
Suitable for a wide range of roofing and cladding profiles

Why Choose Genuine Enterprises

Genuine Enterprises supplies self drilling screws suited specifically to light gauge cold rolled steel, where the right point geometry makes a real difference in installation speed and finish quality. Each batch is checked for drill point sharpness and thread consistency before it's dispatched to customers.

Contractors working on metal buildings and roofing projects across the country choose us as their self drilling screws supplier in India, since we stock a range of sizes and sealing washer options to match different cladding profiles. Our team is also available to help identify the right screw length and drill point based on the steel gauge being used.

1.What makes screws for cold rolled purlins different from those used for hot rolled steel?

They're designed with a finer drill point suited to thin, light gauge steel, allowing faster penetration without the heat buildup that heavier drill points can cause on thinner material.

2. Do these screws require pre-drilled holes?

No, they're built to self-drill directly into cold rolled steel, as long as the screw's drill capacity matches the thickness of the purlin.

3. What sizes are commonly available for these screws?

They typically range from 4.8mm to 5.5mm in diameter, with various lengths available depending on the roof sheet or cladding thickness being fastened.

4. Are sealing washers available with these screws?

Yes, many are supplied with EPDM or neoprene sealing washers to help prevent water ingress at the fixing point in roofing applications.

5. Where can I find trusted self drilling screws dealers in India?

Genuine Enterprises supplies self drilling screws for cold rolled purlins across India, with guidance on choosing the right size and point type for your project.
