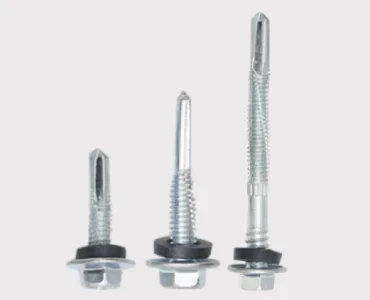

Self Drilling Screws For Hot Rolled Purlins

Short Description

Brand:- HP or any general.

Fastening roof sheets or cladding to hot rolled purlins takes more than a standard self-drilling screw, since these purlins are thicker and denser than the light gauge steel used in cold-formed sections. This variant is built with a heavier drill point and a stronger shank to bore through thick structural steel without snapping or losing its edge halfway through. Many versions include small wings just below the drill tip, which ream out an oversized hole through the roof sheet first, so the wings snap off once they hit the purlin, letting the main thread bite in cleanly without pushing up a ring of debris. This combination of drilling power and precise hole formation makes the screw suited for fastening directly into steel that would otherwise need pre-drilling.

Material: Case-hardened Carbon Steel
Drill Capacity: Rated for hot rolled steel typically 5mm to 12mm thick
Thread Type: Self-tapping thread with wing-assisted drilling section
Size Range: 5.5mm to 6.3mm diameter, with various lengths available
Head Type: Hex washer head with integrated or separate sealing washer
Surface Finish: Zinc Plated, Ruspert Coated, or other corrosion-resistant coatings
Standards: ASTM, DIN, and applicable roofing industry specifications

Key Features

Reinforced drill point for penetrating thick hot rolled steel
Wing design that reams an oversized hole through outer sheeting
Hardened shank to resist snapping during high-torque drilling
Self-tapping thread that engages cleanly after wing breakoff
Compatible with standard roofing and cladding sheet profiles
Available with EPDM or neoprene sealing washers for weatherproofing
Coated finishes available for improved corrosion resistance
Suitable for use with standard drill drivers on site

Applications of Self-Drilling Screws For Hot Rolled Purlins

Industrial shed roofing installation
Warehouse and factory cladding work
Pre-engineered building construction
Metal roof sheet fastening onto structural steel
Wall cladding on hot rolled steel frames
Agricultural building construction
Cold storage and warehouse structures
Commercial building envelope work
Structural steel retrofitting projects
Metal decking and sheeting installation

Advantages of Self-Drilling Screws For Hot Rolled Purlins

Drills directly into thick structural steel without pre-drilling
Wing design prevents debris buildup under the sheet
Reduces installation time compared to standard fasteners
Provides a secure hold on dense, hot rolled steel sections
Sealing washer options help prevent water ingress at fixing points
Performs well across a range of roofing and cladding profiles

Why Choose Genuine Enterprises

Genuine Enterprises supplies self drilling screws designed specifically for the demands of hot rolled purlin fastening, where standard fasteners often fall short. Every batch is checked for drill point hardness and thread quality, since a screw that struggles to penetrate steel on site slows down the entire installation process.

Roofing contractors and structural fabricators across the country turn to us as a self drilling screws supplier in India, largely because we stock the right combination of drill capacity, length, and sealing options for different purlin thicknesses. Our team is also happy to help identify the correct screw specification based on the steel gauge involved in a project.

1.What makes screws for hot rolled purlins different from standard self-drilling screws?
They're built with a stronger drill point and shank to penetrate thick, dense hot rolled steel, which standard self-drilling screws often struggle to bore through cleanly.

2. What is the purpose of the wings below the drill tip?
The wings ream an oversized hole through the outer roof sheet before snapping off, allowing the screw's thread to engage the purlin cleanly without pushing up debris.

3. Do these screws need pre-drilled holes?
No, they're designed to drill directly into hot rolled steel without any pre-drilling, as long as the correct drill capacity is matched to the steel thickness.

4. Are sealing washers included with these screws?
Many versions come with EPDM or neoprene sealing washers to help prevent water leakage at the fixing point, particularly for roofing applications.

5. Where can I find reliable self drilling screws dealers in India?
Genuine Enterprises supplies self drilling screws for hot rolled purlins across India, along with guidance on selecting the right size and drill capacity for your project.
